SKU:YE4-80M1-2

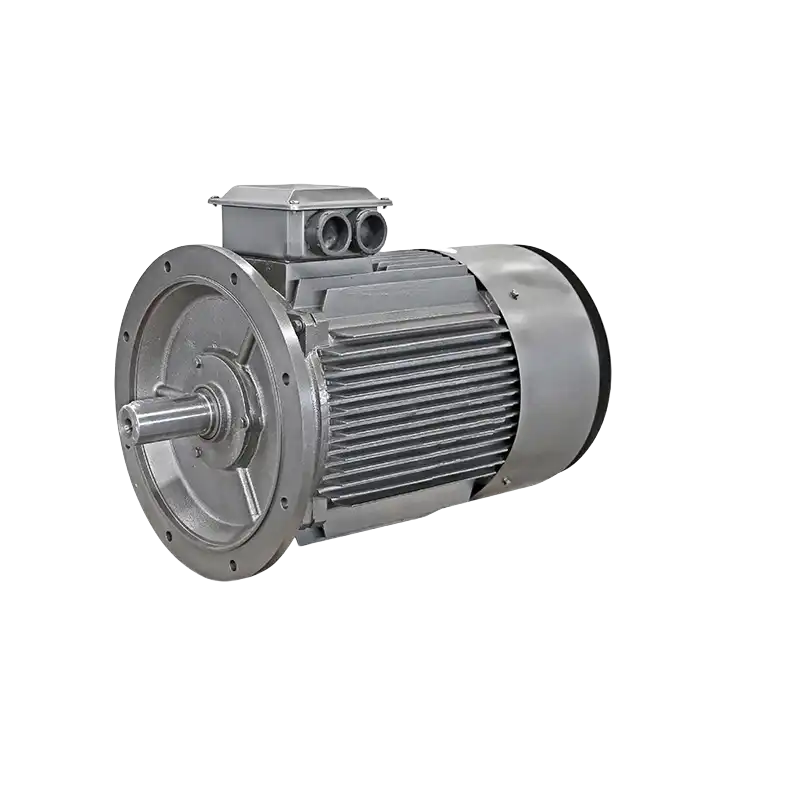

0.75kw 1hp 230/460V 2 poles 50Hz B3/B35 Mounting IC411 TEFC AC 3-phase electric IE4 Motor

Custom Your Motor

kW to HP Calculator

Kilowatts (kW):

Power(Kw)

0.75 HP

1hp

Rated Voltage

380 ~ 420V/440 ~ 480V

Poles

2 RPM

2870r/min

Efficiency

80.7%

Application

General Purpose

Frame Size

80mm

Tstart/Tn

2.2 lst/In

7.0 Tmax/Tn

2.3 Ambient Temperature

-15 ℃ ≤ 0 ≤ 40 ℃

Altitude

not exceeding 1000m

Rated voltage

between 220-760V

Rated frequency

50Hz、60Hz

Protection class

IP55

Insulation class

F

Duty

S1(continuous)

Connection

Star or delta-connection

A

125 B

100 C

50 D

19 E

40 F

6 G

15.5 H

80 M

165 N

130 P

200 R

0 S

12 T

3.5 K

10 L

295 AB

165 AC

175

145 HD

220 HF

185 Click "Generate the Datasheet" to Get the PDF Datasheet of This Motor.

Your Name(Optional)：

项目 #1

项目 #2

项目 #3

Three Phase AC Low Voltage Motors

SKU:YE4-80M1-2

0.75kw 1hp 230/460V 2 poles 50Hz B3/B35 Mounting IC411 TEFC AC 3-phase electric IE4 Motor

Custom Your Motor

kW to HP Calculator

Technical Parameters

Power(Kw)

Phase

RPM

Frame Size

Rated Voltage

Efficiency

Poles

Application

Power(Kw)

0.75

HP

1hp

Rated Voltage

380 ~ 420V/440 ~ 480V

Poles

2

RPM

2870r/min

Efficiency

80.7%

Application

General Purpose

Frame Size

80mm

Tstart/Tn

2.2

lst/In

7.0

Tmax/Tn

2.3

Ambient Temperature

-15 ℃ ≤ 0 ≤ 40 ℃

Altitude

not exceeding 1000m

Rated voltage

between 220-760V

Rated frequency

50Hz、60Hz

Protection class

IP55

Insulation class

F

Duty

S1(continuous)

Connection

Star or delta-connection

Frame Size

A

125

B

100

C

50

D

19

E

40

F

6

G

15.5

H

80

M

165

N

130

P

200

R

0

S

12

T

3.5
